When a sewer failure is buried under concrete beneath a dwelling, the options narrow quickly. Excavation through the floor of an occupied home is expensive, highly disruptive and structurally risky. At Wallumatta Road, Newport, Pearla Plumbing identified a structurally degraded terracotta branch sewer line causing leaks and blockages in a downstairs bathroom — and delivered a $11,720 solution combining precision concrete earthworks at the boundary with trenchless structural epoxy relining beneath the dwelling. The result is a drainage system that now exceeds Australian Standards, carries a lifetime guarantee, and was delivered in full coordination with a concurrent $18,000 electrical infrastructure upgrade by Scott Electrics — without a single conflict between the two scopes.
Project Details
Location: Wallumatta Road, Newport NSW
Property Type: Residential Hillside Estate
Plumbing Scope: $11,720 — Structural Pipe Relining & Sewer Remediation
Combined Project Value: $29,720 (plumbing + electrical infrastructure)
Trade Partner: Scott Electrics — $18,000 3-Phase Electrical Upgrade
Technology: Trenchless structural epoxy relining — felt sleeve & two-part resin
Outcome: Lifetime-guaranteed drainage system — exceeds Australian Standards
The Challenge — Concrete-Encased Sewer Failure Beneath a Newport Dwelling
Terracotta sewer pipework was the standard in Sydney residential construction for much of the twentieth century. At Newport, a section of this original terracotta branch line — running from a downstairs bathroom to the main sewer connection at the property boundary — had degraded to the point of structural failure, causing leaks into the subfloor void and recurring blockages that could not be cleared by conventional means.
The complicating factor was location. Part of the failed line ran under the concrete slab of the downstairs bathroom — making conventional open excavation potentially structurally damaging to the dwelling and completely unacceptable to the homeowner. The remaining section at the property boundary was encased in concrete at depth, requiring significant earthworks to expose and remove.
The Solution
Phase 1 — Precision Earthworks at the Boundary

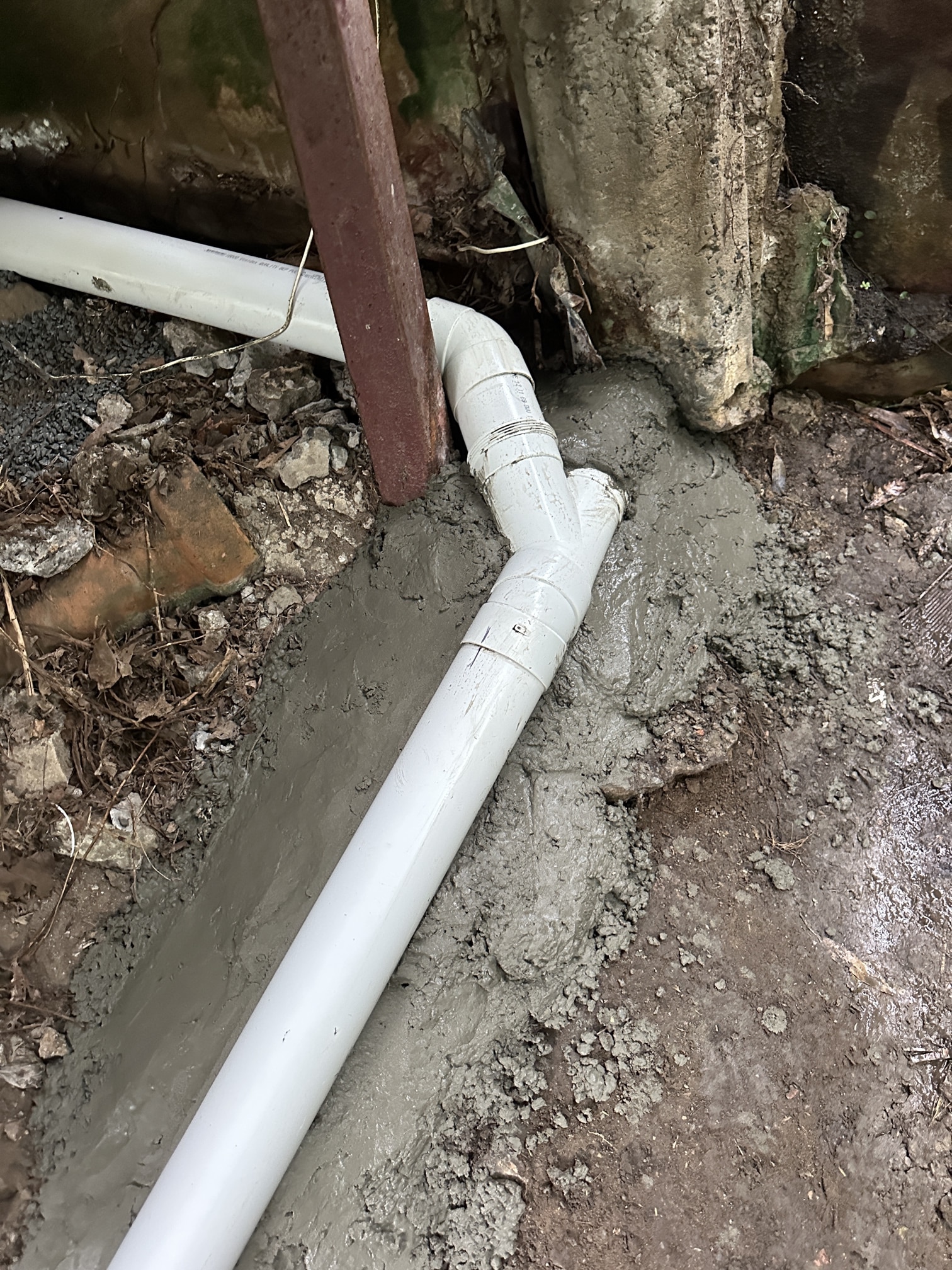

The first phase addressed the section of failed pipework at the property boundary — accessible from outside the dwelling but encased in concrete at depth. Pearla’s team jackhammered and removed 8 metres of concrete-encased earthenware pipework at the boundary to restore unobstructed flow to the PVC main sewer connection.
Phase 2 — Structural Trenchless Epoxy Relining
With the boundary section cleared and flow restored to the main, the under-slab section of degraded terracotta was addressed using structural trenchless pipe relining — eliminating any need to break up the internal floor. Pearla performed a structural relining of 4 metres of terracotta pipework using a felt-sleeve liner saturated with two-part epoxy resin, inserted into the existing pipe and cured in place to form a new structural pipe within the old one.
The Result — A Drainage System That Exceeds Australian Standards
Boundary earthworks: 8 metres of concrete-encased earthenware removed
Trenchless relining: 4 metres of terracotta branch line structurally relined
Internal floor disruption: Zero — fully trenchless under-slab solution
Post-installation standard: Exceeds AS/NZS 3500 sewer drainage requirements
Guarantee: Lifetime — relined section
Combined project value: $29,720 — single point of contact
The total infrastructure investment at Wallumatta Road was $29,720 — $11,720 for the sewer remediation and $18,000 for the electrical upgrade — delivered through a single point of contact and a unified compliance documentation package.
