When water started pooling beneath the kitchen window in Unit 3A of a 100-unit North Bondi apartment building, the source wasn’t obvious — and it wasn’t local. Pearla Plumbing was called in to investigate, requiring access to Units 4A and 5A above to trace where the water was actually coming from. What we found was a burst hot water copper pipe concealed entirely inside the concrete slab — with no external access point and no visible failure anywhere near where the water was presenting. This is exactly the kind of complex strata plumbing diagnosis that separates an experienced investigation from a guess: the water had been travelling through the slab structure before surfacing two floors away from its actual source.
Project Details
| Location | Ocean Street, North Bondi NSW |
| Property Type | 100-Unit Strata Apartment Building |
| Issue | Water pooling in Unit 3A — source untraceable from affected unit |
| Cause | Burst hot water copper pipe concealed within concrete slab |
| Units Involved | 3A (affected), 4A & 5A (investigation access) |
| Outcome | Pipe isolated, rerouted around slab, full reinstatement completed |
The Challenge — A Leak With No Visible Source
Strata buildings present a specific category of plumbing problem that doesn’t exist in standalone houses: water damage in one unit very often originates from a completely different unit, sometimes several floors away. Water doesn’t travel in straight lines once it’s inside a concrete slab or wall cavity — it follows the path of least resistance, which can mean horizontal travel across a slab before finding a point to present as visible damage.
At Ocean Street, the property manager reported pooling water beneath the kitchen window in Unit 3A. On the surface, that location should point to a fairly contained area to investigate. But a visual inspection of Unit 3A’s own plumbing found nothing — no fitting failure, no visible pipe damage, no source within the unit itself.
This is the point where an inexperienced approach goes wrong: chasing the symptom in the unit where it appears, rather than recognising that concrete slab construction in multi-storey buildings allows water to travel significant distances before it surfaces. Our team’s assessment was that the source was almost certainly above Unit 3A — meaning the investigation needed to extend upward into Units 4A and 5A.
The Investigation — Systematic Access Across Multiple Floors
Multi-Unit Leak Tracing
Diagnosing a slab leak in a strata building requires methodical, sequential investigation — not guesswork. Our team coordinated access to Units 4A and 5A, directly above the affected Unit 3A, to trace the water’s actual origin point.
- Full plumbing inspection conducted across Units 3A, 4A and 5A
- Fixture and fitting checks completed unit by unit to eliminate straightforward causes before considering concealed slab failure
- Moisture patterns assessed across multiple floors to establish the most likely direction and source of water travel
- Access coordinated with strata management and affected residents to minimise disruption across three occupied units

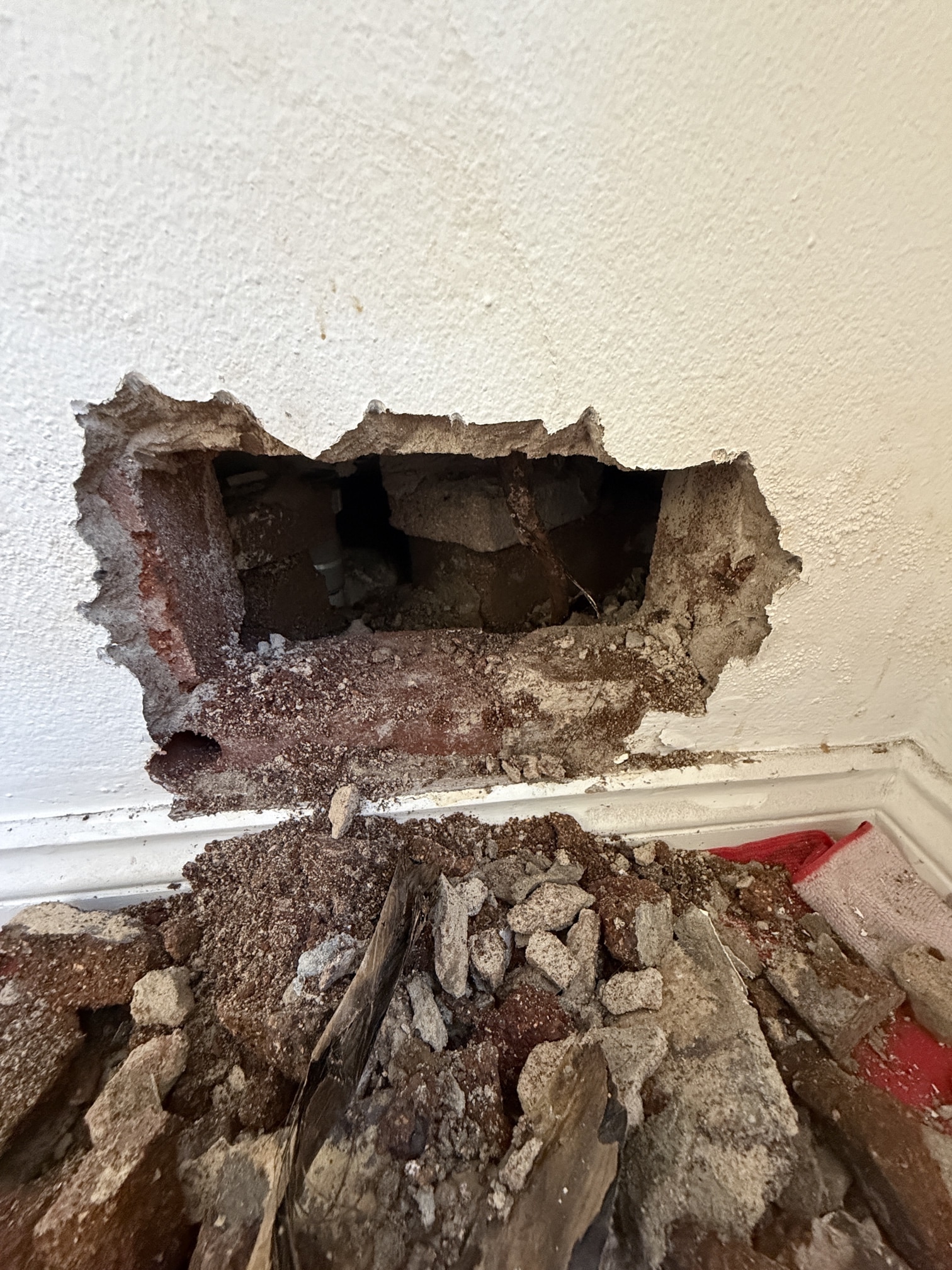

Locating the Concealed Slab Failure
The investigation identified the actual source: a burst hot water copper pipe running inside the concrete slab, with no external access point anywhere along its run. The pipe had failed within the structure itself — meaning the water had been migrating through the slab for some time before finally presenting as visible pooling in Unit 3A, two floors below the point of failure.
This kind of slab-concealed failure is one of the most difficult plumbing faults to diagnose precisely because the visible symptom and the actual fault location can be metres apart, both horizontally and vertically. Identifying it correctly avoided what could easily have become a far more invasive and costly investigation — opening up the wrong unit, or worse, multiple wrong units, chasing a symptom rather than a cause.
The Solution
Isolation & Disconnection
With the failed section of pipe identified, our team isolated and disconnected it from the hot water system — stopping the leak at its actual source and immediately ending the water migration through the slab that had been causing the damage in Unit 3A.

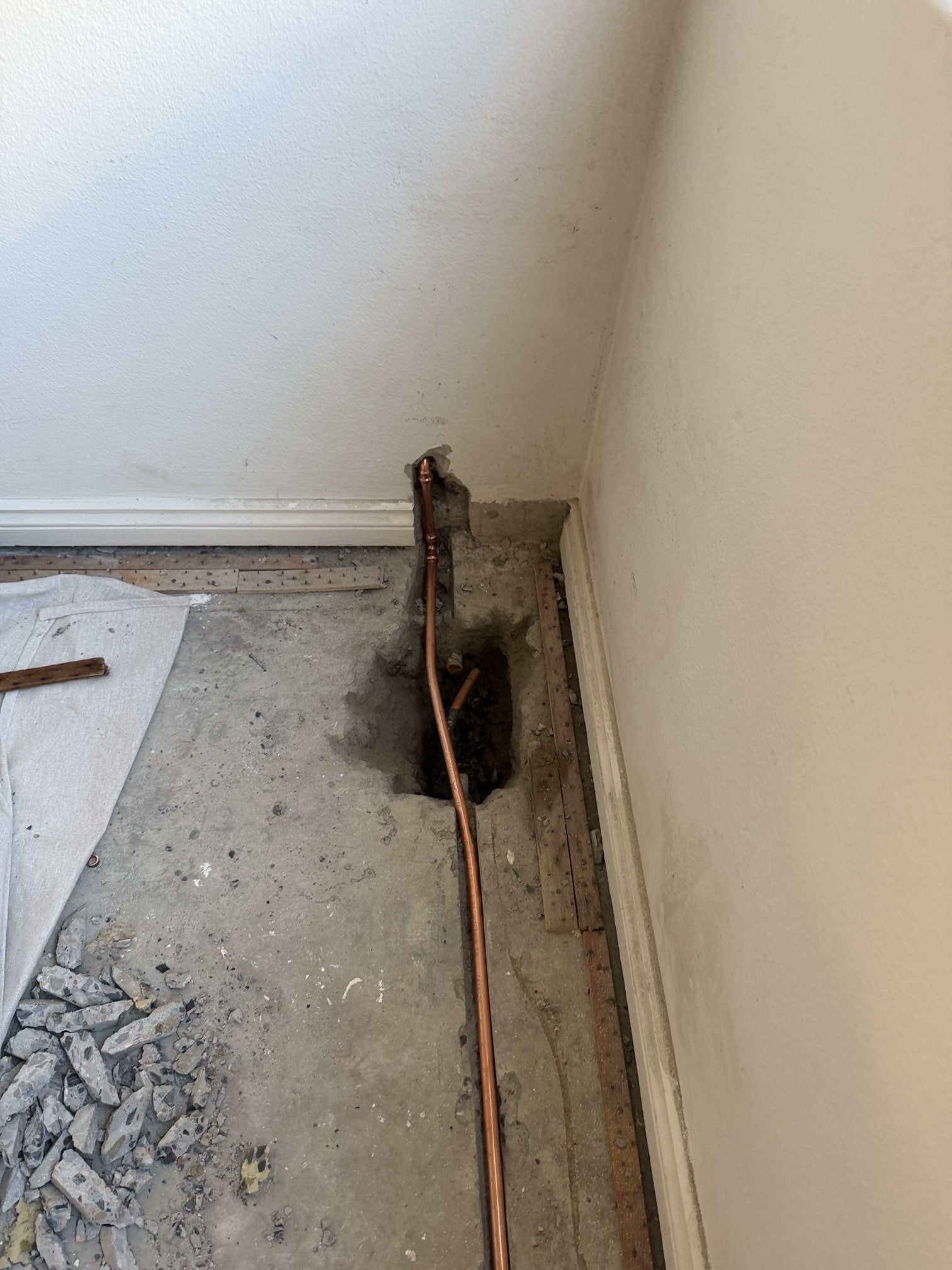

Slab Pipe Reroute
Rather than attempting to repair or replace the failed pipe within the concrete slab itself — which would have required extensive demolition of structural concrete — our team rerouted the hot water line entirely around the slab.
- New copper pipe run installed along the perimeter, avoiding the slab structure completely
- Pipe sizing and routing planned to maintain correct hot water pressure and flow to all affected fixtures
- Installation carried out to AS/NZS 3500 plumbing standards
- New route designed with accessible service points — eliminating any future need to access concealed pipework within the slab for this section of the system
Rerouting around a structural slab failure rather than attempting an in-slab repair is the correct long-term approach in almost every case. A repaired or patched section within a concrete slab carries an elevated risk of recurrence given the surrounding structure has already demonstrated a failure point — while a perimeter reroute removes the hot water line from the slab environment entirely.

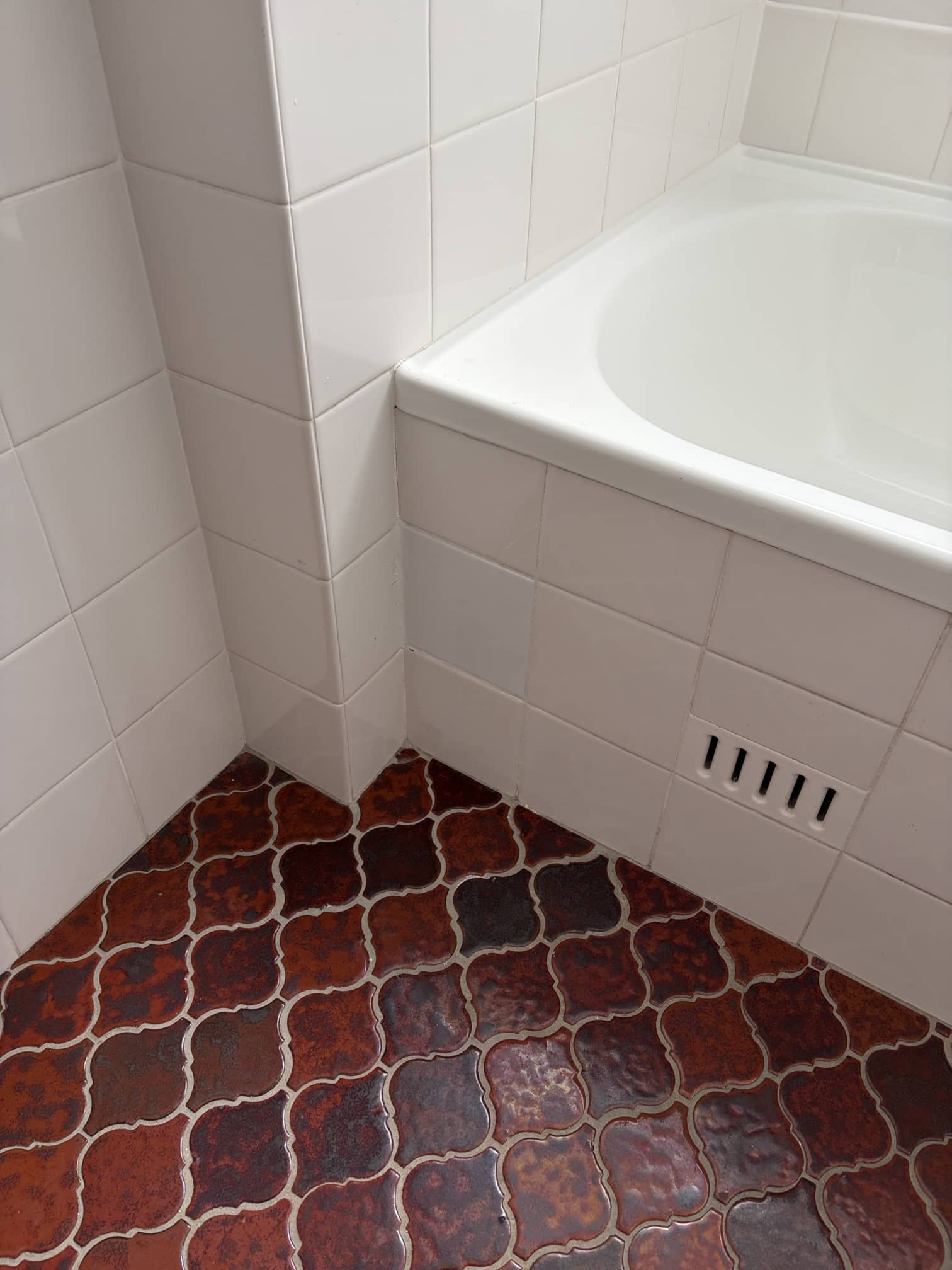

Reinstatement
All penetrations made during the investigation and reroute — across Units 3A, 4A and 5A — were made good on completion.
- All access points and investigation penetrations sealed and finished
- Affected surfaces in all three units reinstated to pre-investigation condition
- Final inspection completed to confirm no residual moisture or ongoing leak activity
- Strata management provided with a full report documenting the investigation, cause and remediation
The Outcome
The water ingress affecting Unit 3A was permanently resolved by addressing its actual cause — a slab-concealed pipe failure two floors above — rather than treating the visible symptom. The new perimeter pipe route eliminates the failed section from future risk, and all three units involved in the investigation were returned to their original condition.
| Units investigated | 3A, 4A, 5A |
| Root cause identified | Burst hot water copper pipe within concrete slab |
| Repair approach | Perimeter reroute — no in-slab repair required |
| Reinstatement | Full make-good across all access points |
| Result | Leak fully resolved at source — no recurrence risk from repaired section |
Why Strata Leak Investigations Require Specialist Experience
Water damage in a strata building is rarely as simple as it first appears. The unit where damage presents is frequently not the unit where the fault originates — water travels through slabs, wall cavities and service risers in ways that don’t map intuitively to the building’s floor plan.
Getting a strata leak investigation right requires:
Recognising when the symptom and the source are not in the same place. A leak presenting on a lower floor in a concrete slab building should immediately raise the question of what’s happening on the floor or floors above — not just within the affected unit.
Coordinated multi-unit access. Tracing a concealed leak across several apartments requires coordination with strata management and multiple residents — managing access, minimising disruption, and working systematically rather than opening up units speculatively.
Engineering judgement on repair vs. reroute. When a failure is found within a structural element like a concrete slab, the decision between attempting an in-place repair and rerouting the service entirely is a significant one — with cost, disruption and long-term reliability implications that need to be properly weighed.
Clear reporting for strata records. Strata committees and managers need a clear written account of what was found, why it happened, and what was done — both for their own records and for any insurance claim arising from the water damage.
Frequently Asked Questions
How do I know if water damage in my apartment is coming from another unit?
Signs that point to a source outside your own unit include: no identifiable plumbing fault within your unit despite visible water damage, damage appearing on a ceiling or wall that borders a different unit’s plumbing, and water damage that worsens over time without any plumbing activity within your own unit. If a visual inspection of your unit’s plumbing finds nothing, the investigation needs to extend to adjacent and upper units — this is a job for an experienced strata plumber, not a standard residential callout.
Why was the pipe inside the concrete slab in the first place?
Concrete slab construction in apartment buildings frequently routes hot and cold water pipework within the slab itself, particularly in buildings constructed before more recent standards favoured accessible service risers and wall cavity routing. While this was standard practice for its era, it creates exactly this kind of diagnostic and repair challenge when pipework eventually fails — there is no external access, and any in-slab repair requires breaking into structural concrete.
Why did Pearla reroute the pipe instead of repairing it within the slab?
Repairing a pipe within a structural concrete slab requires breaking into the slab itself — a far more invasive, costly and structurally disruptive approach than rerouting the line around the slab via an accessible path. A reroute also removes that section of pipework from the slab environment entirely, eliminating the conditions that contributed to the original failure. In almost all cases, rerouting delivers a more reliable long-term outcome than an in-slab repair.
How long does a multi-unit leak investigation like this typically take?
It depends on the complexity of the building and how quickly the source can be isolated. Straightforward cases can be resolved within a day; cases requiring access across multiple units, as at Ocean Street, typically take longer due to the coordination required with strata management and residents. Pearla Plumbing prioritises a methodical approach over a fast but incorrect diagnosis — getting it right the first time avoids repeat investigations and further disruption to residents.
Does Pearla Plumbing work directly with strata managers on these investigations?
Yes. Pearla Plumbing regularly works directly with strata managers and committees across Sydney’s Eastern Suburbs and Northern Beaches on complex plumbing investigations, providing coordinated access arrangements, clear progress communication, and full written reports suitable for strata records and insurance purposes.
What should I do if I notice unexplained water pooling or ceiling damage in my apartment?
Don’t wait. Water that has travelled through a slab or wall cavity to reach a visible point has often been doing so for some time, and the longer it continues, the greater the structural damage and the more extensive the eventual remediation. Contact Pearla Plumbing or your strata manager as soon as unexplained water damage appears — early diagnosis is significantly less costly and disruptive than addressing damage that has had time to spread.
If your strata building has unexplained water ingress, ceiling damage or pooling water with no obvious source — don’t wait for it to get worse. Pearla Plumbing specialises in complex strata and apartment plumbing investigations across Sydney, with the diagnostic experience to find the actual cause, not just chase the symptom.
