Sydney’s North Shore and Northern Beaches receive some of the most intense rainfall events in the greater Sydney region. Concentrated summer storms, east coast lows and the coastal topography of suburbs from Manly to Newport and Chatswood to Mosman can direct enormous volumes of water across properties in a matter of hours. When the stormwater drainage infrastructure beneath and around a North Shore or Northern Beaches property can’t handle that load — because pipes are blocked, cracked, root-damaged or simply undersized — the consequences range from flooded lawns and pooling driveways to foundation erosion, subfloor moisture damage and long-term structural deterioration.
Pearla Plumbing & Electrical provides expert stormwater drainage assessment, CCTV drain camera inspection and stormwater pipe repair across Sydney’s North Shore and Northern Beaches — from our base in Warriewood, with coverage extending across the full Northern Beaches peninsula and North Shore. This guide covers everything property owners and strata managers in the region need to know about identifying, diagnosing and permanently resolving stormwater drainage problems.
Why Stormwater Drainage Matters More on the North Shore & Northern Beaches
Stormwater management is a concern for all Sydney properties — but it is a particularly acute one for North Shore and Northern Beaches homes, for several reasons that are specific to this part of the city.
Topography. The Northern Beaches and North Shore are characterised by undulating coastal terrain — hills, valleys, escarpments and gullies that concentrate surface runoff naturally. Properties at the base of a slope, on a gully line or adjacent to a drainage easement can receive significantly more runoff than their own roof area generates during a heavy storm event.
Established tree canopy. The North Shore in particular is defined by its tree canopy — Norfolk Island pines, established gums, figs and camellia hedges that make these suburbs among the most beautiful in Sydney. Those same root systems, however, are in constant search of moisture — and aged stormwater pipes beneath gardens and driveways are a primary target. Root intrusion into stormwater lines is among the most common causes of drainage failure across North Shore suburbs including Mosman, Chatswood, Lane Cove, Willoughby and Neutral Bay.
Aged infrastructure. Many North Shore and Northern Beaches homes were built between the 1940s and 1970s — and their original stormwater infrastructure, where it has not been upgraded, is now over 50 years old. Terracotta and earthenware stormwater pipes from this era are subject to joint failure, cracking and partial collapse that progressively reduces drainage capacity and eventually causes complete failure.
High-value properties. Water damage to a prestige North Shore or Northern Beaches property — from foundation moisture penetration, subfloor flooding or retaining wall failure caused by inadequate stormwater management — can result in remediation costs that dwarf the investment in a proper drainage solution. The economics of proactive stormwater maintenance are particularly compelling at the upper end of the property market.
What Happens When Stormwater Drainage Fails
When stormwater infrastructure fails to manage runoff adequately, the consequences are progressive and compound over time. What begins as pooling water on a lawn or slow-draining driveway can develop into serious structural damage if the underlying cause is not addressed.
Foundation and footing damage. Persistent saturation of the soil against or beneath a foundation causes the soil to lose load-bearing capacity — leading to footing movement, cracked slabs and in severe cases subsidence. Foundation repair on a North Shore property is an expensive and disruptive undertaking that proper stormwater management prevents entirely.
Subfloor moisture and timber rot. Water that finds its way beneath a timber-floored home creates a moisture environment that promotes timber decay, mould growth and pest activity. In older North Shore homes with deep subfloor cavities — common in the timber and brick construction of the 1950s and 60s — subfloor flooding from failed stormwater drainage can cause structural timber damage that only becomes apparent years after the water event that caused it.
Retaining wall failure. North Shore and Northern Beaches properties with retaining walls are particularly vulnerable to stormwater drainage failure. Retaining walls rely on drainage to relieve hydrostatic pressure from water-saturated soil behind them. When stormwater drainage fails, that pressure builds until the wall fails — a structural event that is expensive, dangerous and entirely preventable with adequate drainage.
Concrete deterioration. Pooling water on driveways and paved areas accelerates concrete deterioration through chemical attack, freeze-thaw cycling in cooler months and the displacement of supporting sub-base material. Stormwater pooling on paved surfaces that is not addressed will eventually require concrete replacement in addition to the drainage work.
Mould and indoor air quality. Persistent subfloor or wall moisture from stormwater infiltration creates the conditions for mould growth inside the home — affecting indoor air quality and creating health risks for occupants that are difficult and expensive to remediate without first resolving the underlying drainage cause.
CCTV Drain Camera Inspection — The Essential First Step for Any Stormwater Problem
The single most important diagnostic tool for stormwater drainage problems on the North Shore and Northern Beaches is CCTV drain camera inspection. Without direct visual assessment of the pipe interior, any stormwater diagnosis is necessarily speculative — based on symptoms at surface level without knowledge of what is actually causing them or where.

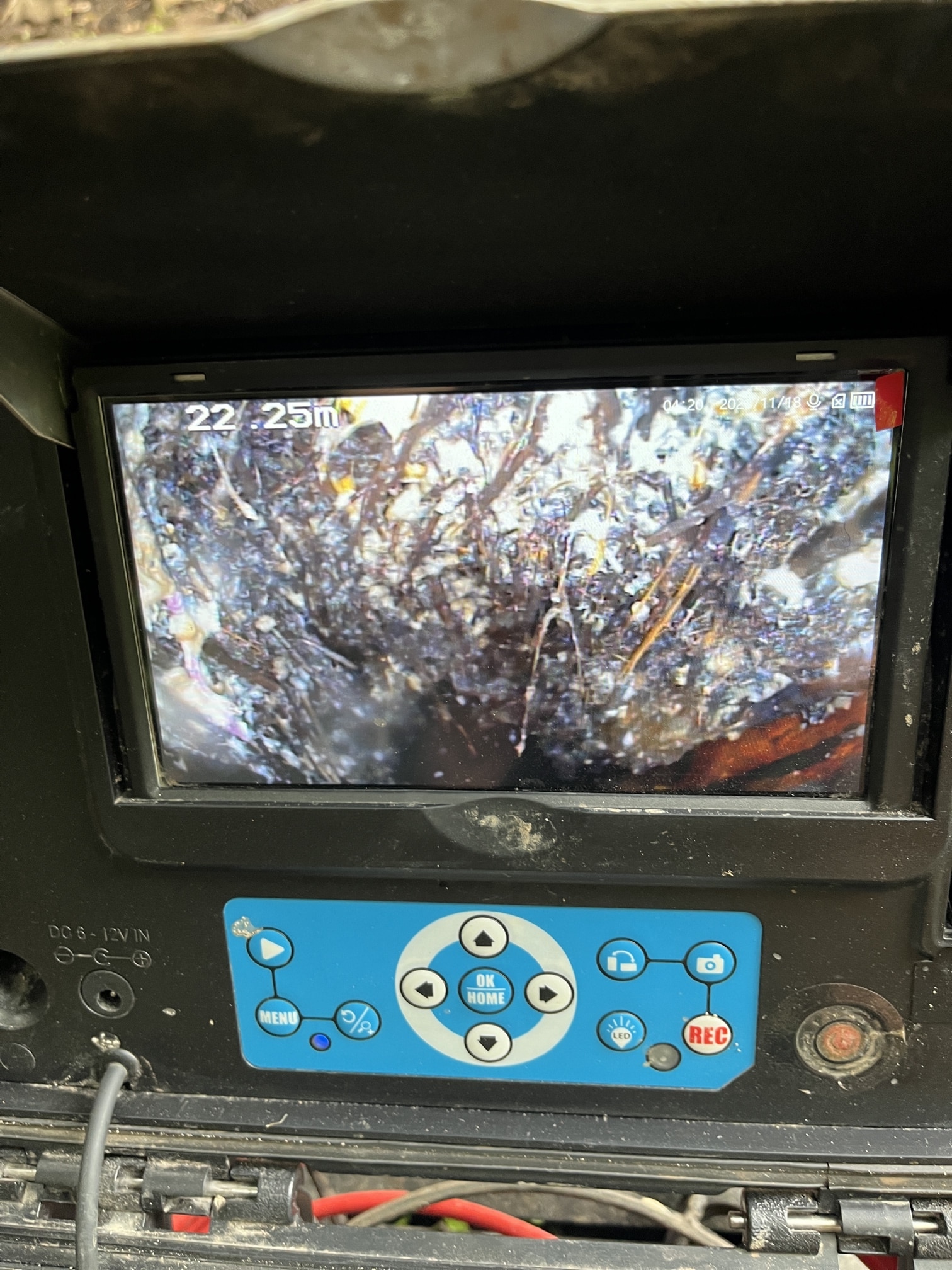

Pearla Plumbing’s high-definition CCTV drain cameras travel through stormwater pipes, providing real-time visual footage that is shown to the property owner on site — giving direct, transparent evidence of the pipe condition and a clear, demonstrable basis for any repair recommendation.
What CCTV Drain Camera Inspection Identifies in North Shore & Northern Beaches Stormwater Systems
Root intrusion — the precise location, extent and severity of tree root entry through cracked joints or pipe walls. In established North Shore gardens, root intrusion is the most common cause of stormwater pipe failure and will not be resolved by clearance alone — the entry points must be sealed.
Structural cracking and joint failure — cracks in pipe walls, displaced joints and partially collapsed sections that reduce drainage capacity and will progressively worsen without structural repair.
Blockages and their nature — sediment accumulation, debris blockages and root masses, with their exact location mapped within the pipe run.
Pipe condition assessment — the overall structural condition of the stormwater pipe, informing whether clearance alone is sufficient, pipe relining is required, or in advanced cases, pipe replacement is necessary.
Incorrect gradients and flow problems — visual assessment of how water flows through the pipe, identifying low points or incorrectly graded sections that cause standing water within the pipe and reduce drainage performance.
When to Book a CCTV Drain Camera Inspection on the North Shore or Northern Beaches
A CCTV drain camera inspection is recommended whenever:
- Stormwater drainage is slow or backing up during rainfall events
- The same stormwater drain is blocking repeatedly despite being cleared
- There is evidence of sinkholes, soft ground or surface settlement above buried stormwater lines
- Pooling is occurring in an area that previously drained adequately
- A property is being purchased and the stormwater infrastructure condition is unknown
- A stormwater line runs beneath established garden plantings with significant root systems
- A property is over 30 years old and the stormwater drainage has never been formally inspected
Pearla Plumbing provides CCTV drain camera inspections across all North Shore and Northern Beaches suburbs, with footage provided to the property owner and a written inspection report suitable for insurance, property sale and strata records purposes.
Common Stormwater Drainage Problems on the North Shore & Northern Beaches
Understanding the specific failure patterns that Pearla Plumbing encounters most frequently across the North Shore and Northern Beaches helps property owners identify developing problems before they escalate.
Blocked Stormwater Pipes
Blocked stormwater pipes are the most frequent stormwater drainage callout across the North Shore and Northern Beaches. Causes include:
Leaf and debris accumulation — the North Shore’s heavy tree canopy produces significant leaf fall that accumulates in pits, grates and the upper sections of stormwater pipes. Regular pit cleaning and grate maintenance reduces this risk, but once debris has entered the pipe it requires professional clearance.
Sediment ingress — sediment washed into stormwater pipes through cracked joints or open grates accumulates at low points and bends, progressively reducing the effective bore of the pipe.
Root intrusion — as covered above, the single most significant cause of structural stormwater pipe blockage across the North Shore. Root masses that have fully established within a stormwater pipe cannot be resolved by high-pressure jetting alone — the entry points must be sealed with pipe relining to prevent regrowth.
Collapsed sections — aged terracotta stormwater pipes that have cracked and collapsed create complete drainage failure. Collapsed sections require either relining if the surrounding pipe structure is sufficient to hold a liner, or localised excavation and replacement.
Poor Site Grading and Surface Pooling
Many North Shore and Northern Beaches properties — particularly those that have been extended, landscaped or paved over without proper drainage consideration — have surface grading that directs runoff toward the dwelling rather than away from it. This is a common cause of water pooling against foundations and in subfloor cavities.
Resolving poor site grading requires a combination of earthworks to correct surface fall and the installation of appropriate surface drainage — catch basins, trench drains or French drains — to intercept and redirect runoff before it reaches vulnerable areas of the property.
Failed or Undersized Stormwater Infrastructure
Properties built in the 1940s through 1960s were designed around rainfall assumptions and drainage standards that are significantly below what current best practice and the North Shore’s actual storm intensity require. Stormwater pipes that were adequate for the rainfall events of 50 years ago are frequently undersized for the concentrated rainfall events that the North Shore and Northern Beaches now experience.
Where the stormwater infrastructure is undersized for the drainage load, relining or clearance alone will not resolve the problem — the system needs to be augmented with additional drainage capacity, typically through the installation of additional pits, larger-diameter connections or supplementary surface drainage systems.
Stormwater Drainage Solutions — What Pearla Plumbing Installs on the North Shore & Northern Beaches
Catch Basins
Catch basins — also called stormwater pits or drainage pits — collect surface water at low points in a property and channel it away through a connected pipe network. They are the most effective solution for properties with localised surface pooling on lawns, paved areas or driveways.
A correctly sized and positioned catch basin intercepts surface runoff before it reaches the dwelling, redirecting it into the stormwater network. Pearla Plumbing designs, supplies and installs catch basin systems across North Shore and Northern Beaches properties, sized for the drainage area and connected to the appropriate point in the stormwater network.
French Drains
French drains use a perforated pipe buried in a gravel trench to collect and redirect subsurface water — water that is saturating the soil rather than pooling at the surface. They are the correct solution for North Shore properties with soil saturation problems, retaining wall drainage requirements or subfloor moisture issues caused by groundwater infiltration rather than surface runoff.
A French drain intercepts water in the soil profile before it reaches the foundation or subfloor — addressing the source of subfloor moisture and retaining wall pressure rather than treating the symptoms at surface level.
Trench Drains and Surface Channels
Trench drains are linear surface drainage channels installed across driveways, patios, pool surrounds or entry points to intercept high-volume surface runoff and redirect it into the stormwater network before it reaches the dwelling or pools on paved surfaces.
They are particularly effective across driveways on sloped North Shore properties where rainfall runoff concentrates into a high-velocity flow down the driveway surface — a common pattern in the hilly terrain of suburbs like Mosman, Cremorne, Neutral Bay and across the Northern Beaches peninsula.
Stormwater Pipe Relining — Trenchless Repair
For stormwater pipes that CCTV inspection confirms are structurally compromised — cracked, root-damaged, with failed joints or partially collapsed sections — trenchless pipe relining delivers a permanent structural repair without the cost and disruption of excavating and replacing the pipe.
A structural felt-sleeve liner saturated with two-part epoxy resin is inserted into the existing stormwater pipe and cured in place, forming a new continuous jointless pipe within the old one. The relined pipe is root-proof, chemically resistant and rated for 50+ years — permanently eliminating the root entry points and structural cracks that caused the original failure.
For North Shore and Northern Beaches properties where stormwater pipes run beneath established gardens, driveways, retaining walls or paved surfaces, trenchless relining is almost always the preferred solution — delivering a replacement-quality outcome without the excavation that traditional pipe replacement would require.
Key advantages of pipe relining for North Shore & Northern Beaches stormwater:
- No excavation of established gardens, driveways or paved surfaces
- No damage to retaining walls or landscaping above the pipe run
- Permanent root-proof finish — eliminates regrowth through pipe joints
- Jointless installation — no future joint failure points
- Completed significantly faster than excavation-based replacement
- Lifetime guarantee on all Pearla Plumbing structural relining work
Stormwater Drainage for Strata Buildings — North Shore & Northern Beaches
Strata buildings across the North Shore and Northern Beaches — from beachfront apartment complexes in Manly and Dee Why to residential strata developments in Chatswood and Willoughby — have specific stormwater maintenance requirements that differ from standalone residential properties.
Common property stormwater infrastructure — roof drainage, car park drainage, garden drainage pits and connections to the council stormwater network — is the responsibility of the owners corporation and requires regular inspection and maintenance to remain functional and compliant.
Pearla Plumbing provides dedicated stormwater services for strata buildings across the North Shore and Northern Beaches including:
- CCTV inspection of common property stormwater drainage with written report for strata records
- High-pressure hydro jetting of blocked stormwater lines in common areas
- Catch basin and pit cleaning and maintenance programmes
- Stormwater pipe relining for common property drainage without disruption to residents or the building’s grounds
- Emergency response for stormwater drainage failures during or after storm events
- Inspection reports suitable for strata committees, building managers and insurance purposes
Emergency Stormwater Response — North Shore & Northern Beaches
Stormwater drainage failures that occur during or immediately after storm events are genuine emergencies — active flooding, blocked pipes backing water up against the foundation or into subfloor spaces cannot wait for a scheduled appointment.
Pearla Plumbing operates 24/7 emergency stormwater response across the North Shore and Northern Beaches. For urgent stormwater drainage failures — active pooling against foundations, blocked pipes causing internal flooding risk, or collapsed stormwater infrastructure — call Pearla Plumbing immediately on 02 9999 4563. We dispatch immediately and provide upfront pricing before any work commences.
North Shore & Northern Beaches Suburbs Pearla Plumbing Services for Stormwater
Pearla Plumbing provides stormwater drainage, CCTV drain camera inspection and pipe relining services across all North Shore and Northern Beaches locations including Warriewood, Manly, Freshwater, Dee Why, Collaroy, Narrabeen, Mona Vale, Newport, Avalon, Brookvale, Frenchs Forest, Forestville, Mosman, Neutral Bay, Cremorne, Cammeray, Chatswood, Willoughby, Lane Cove, Artarmon, St Leonards, North Sydney and surrounds.
Frequently Asked Questions — Stormwater Drainage North Shore & Northern Beaches
What is a CCTV drain camera inspection and why do I need one for my stormwater problem?
A CCTV drain camera inspection involves passing a waterproof high-definition camera through your stormwater pipe to visually inspect the interior. It identifies the exact cause and location of blockages, structural cracking, root intrusion, collapsed sections and drainage flow problems — information that is impossible to obtain from above ground. For any recurring stormwater problem or before any major stormwater repair is carried out, CCTV inspection ensures the correct repair method is applied to the actual problem rather than a guess. Pearla Plumbing provides CCTV drain camera inspections across the North Shore and Northern Beaches with footage shown on site and a written report on completion.
How do I know if my North Shore property’s stormwater pipes have tree root damage?
The most common signs of root intrusion in stormwater pipes include: drainage that is slow or backing up in areas where it previously worked well, recurring blockages in the same stormwater line despite being cleared, surface settlement or soft ground above buried drainage lines, and sinkholes appearing near stormwater pit locations. A CCTV camera inspection provides definitive confirmation — showing the root mass directly, its location within the pipe and the entry point that needs to be sealed. Pearla Plumbing provides stormwater CCTV inspections across all North Shore and Northern Beaches suburbs.
What is the difference between pipe relining and pipe replacement for stormwater pipes?
Pipe relining repairs the existing pipe from within using a structural epoxy liner, without any excavation — the liner is inserted through existing access points and cured in place to form a new jointless pipe inside the old one. Pipe replacement involves excavating to the pipe, removing the old pipe and installing a new one — requiring significant ground disturbance above the entire pipe run. For North Shore and Northern Beaches properties where stormwater pipes run beneath gardens, driveways, retaining walls or established plantings, pipe relining is almost always the preferred option — it delivers a permanent, lifetime-guaranteed result without excavating anything above the pipe.
How often should stormwater pits and drainage lines be inspected on a North Shore property?
Annual inspection is recommended for most North Shore and Northern Beaches properties — including pit cleaning, grate inspection and a visual check of accessible drainage components. For properties with established trees above or adjacent to buried stormwater lines, or properties with a history of drainage problems, more frequent inspection is advisable. For strata buildings, a formal CCTV inspection of common property stormwater every three to five years provides documented condition records and identifies developing issues before they become emergency repairs.
Can Pearla Plumbing reline stormwater pipes without excavating my garden or driveway?
Yes — in most cases. Trenchless pipe relining is performed from existing inspection points or drainage pits, without excavating along the pipe run. This means established garden plantings, driveways, retaining walls and paved surfaces above the pipe are undisturbed. The only ground disturbance required is at the access points, which are typically existing pit or inspection point locations. Pearla Plumbing provides trenchless stormwater pipe relining across the North Shore and Northern Beaches with a lifetime guarantee on all structural relining work.
What causes stormwater pipes to fail on older North Shore and Northern Beaches properties?
The primary causes of stormwater pipe failure on older North Shore and Northern Beaches properties are: tree root intrusion through aged cement mortar joints that have dried and cracked over time; structural cracking of terracotta or earthenware pipe sections from ground movement or physical pressure; sediment accumulation at low points or incorrectly graded sections; and in advanced cases, partial or complete collapse of deteriorated pipe sections. All of these can be identified and mapped precisely by CCTV drain camera inspection before any repair is planned.
Does Pearla Plumbing provide stormwater services for strata buildings on the North Shore?
Yes. Pearla Plumbing provides dedicated stormwater services for strata buildings and common property across the North Shore and Northern Beaches — including CCTV inspection with written reports for strata records, common property drain maintenance, blocked stormwater clearance, pipe relining and emergency response. Contact us to discuss a maintenance programme or inspection schedule for your strata building.
What should I do if my property is actively flooding during a storm event?
If active stormwater drainage failure is causing flooding against your foundation, into a subfloor space or threatening internal areas — call Pearla Plumbing immediately on 02 9999 4563. We operate 24/7 emergency stormwater response across the North Shore and Northern Beaches. While waiting for our team, if it is safe to do so, clear any debris from visible stormwater grates and pits to maximise whatever drainage capacity remains — but do not attempt to open or access drainage infrastructure during active flooding.
Whether your North Shore or Northern Beaches property has a blocked stormwater drain that keeps coming back, pooling water with no obvious cause, a stormwater pipe that needs CCTV assessment, or a full drainage upgrade — Pearla Plumbing & Electrical provides the diagnostic expertise, the right equipment and the trenchless repair capability to resolve it permanently.
