Why Relocating a Kitchen Is a Major Plumbing Job
It’s tempting to think of a kitchen relocation as moving a few pipes. In practice, it’s a full hydraulic reconfiguration — particularly in an established Sydney home where the existing drainage infrastructure was designed around the original floor plan and may have been in place for decades.
At 10 Prahran Avenue, the brief was straightforward on paper: move the kitchen from its original location into the former main bedroom. But executing that move to a standard that would pass a Plumbing Code of Australia inspection — and hold up for the next 30 years without drainage issues — required precision at every step.
The two most technically demanding aspects of any kitchen relocation are drainage fall rates and decommissioning the existing services cleanly. Get either of those wrong and the problems don’t show up immediately — they show up six months later when water starts backing up or a concealed leak causes structural damage.
Step 1 — Strategic Decommissioning of the Original Kitchen Services
Before any new pipework is installed, the existing kitchen infrastructure has to be removed cleanly and the remaining network sealed correctly.
At 10 Prahran Avenue, Pearla’s team began by safely capping all original kitchen waste and water lines — the sink waste, the dishwasher outlet, the hot and cold supply lines. Capping is not simply plugging a pipe. Every cap was pressure-tested after installation to verify the remaining plumbing core was 100% watertight before construction continued.
This step is often rushed on renovation sites. A failed cap discovered after walls have been lined and tiled means cutting back into finished surfaces — an expensive and avoidable problem. Pressure testing at this stage eliminates that risk entirely.
What was decommissioned:
- Original kitchen sink waste line — capped and pressure tested
- Hot and cold water supply lines to the original kitchen position — capped and tested
- Dishwasher outlet — decommissioned and drainage point sealed
- All decommissioning works documented for the Plumbing Code of Australia compliance file
Step 2 — Building the New Hydraulic Core in the Former Bedroom
With the original services safely decommissioned, the new kitchen infrastructure was built from scratch in the former main bedroom — a space with no existing drainage or supply connections.
This is where fall-rate calculations become critical.
H3: Drainage Fall Rates — Why They Matter
Drainage doesn’t work on pressure — it works on gravity. For water and waste to flow correctly through a drain to the sewer, the pipe must run at a precise downward angle: the fall rate. Too shallow and waste accumulates, blockages form and the drainage fails over time. Too steep and the water runs ahead of the solids, leaving material behind — which also causes blockages and odour.
The Plumbing Code of Australia specifies minimum fall rates for different pipe diameters and drain types. In a kitchen relocation, where you’re running new drainage across a floor plan that wasn’t designed with that drainage in mind, achieving the correct fall rate often requires careful structural planning — not just routing a pipe along the easiest path.
At 10 Prahran Avenue, Pearla’s technicians performed precision fall-rate calculations for all new drainage runs, including:
- High-flow kitchen sink waste drainage — sized and graded to AS/NZS 3500 standards
- Dishwasher waste point — installed at the new kitchen position with correct fall to the main drainage stack
- All new drainage runs confirmed against fall-rate calculations before floor and wall close-up

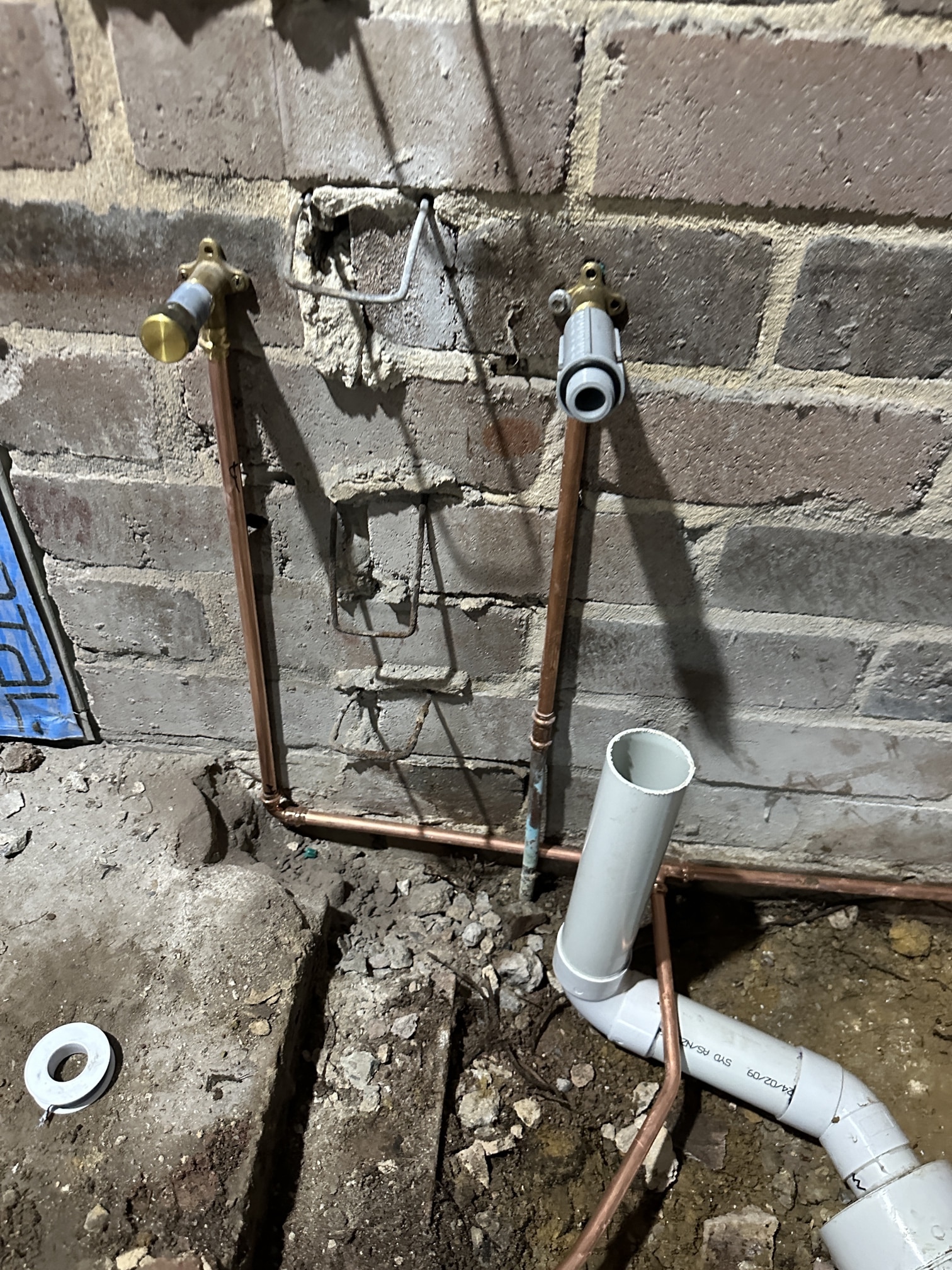

New Water Supply Lines
Hot and cold supply lines were extended to the new kitchen position — run cleanly through wall cavities before lining, eliminating surface-mounted pipework.
- Hot and cold copper supply lines to new sink position
- Correct pressure-balancing maintained across the extended run
- All supply lines pressure tested before wall close-up
Point-of-Use Filtration — Fridge Water & Ice Line
The new kitchen design included a high-performance fridge with integrated water and ice dispensing. Pearla installed a dedicated filtered water line to the new fridge location — a separate supply line specifically for the fridge, with point-of-use filtration installed in-line.
- Dedicated cold water line to new fridge position
- In-line point-of-use filtration for clean ice and drinking water
- Line installed and tested before cabinetry installation — no post-fit access issues
The Dual-Trade Advantage — Pearla Plumbing & Scott Electrics
The 10 Prahran Avenue project is a strong example of why a coordinated dual-trade approach delivers better outcomes than managing a plumber and electrician as separate contractors.
As Pearla migrated the waste lines and built the new hydraulic core, Scott Electrics was on site simultaneously — reconfiguring the high-load electrical circuits for the oven and cooktop at the new kitchen position. The two scopes ran in parallel rather than sequentially.
What this meant in practice:
- No coordination lag — plumbing and electrical rough-in completed in the same site visit window
- No conflicting infrastructure — pipe runs and conduit runs were planned together, not around each other
- The new kitchen had live water and live power at the same time — no waiting for one trade to finish before the other could complete their work
On a kitchen migration of this complexity, running the trades sequentially would have added weeks to the programme. Running them simultaneously — from a shared plan — compressed the rough-in phase significantly and reduced overall disruption to the household.
Compliance — Plumbing Code of Australia & 2026 NSW Safety Standards
All hydraulic work at 10 Prahran Avenue was carried out in compliance with the Plumbing Code of Australia and 2026 NSW Safety Standards.
Equipotential Bonding — Why the Plumber and Electrician Need to Work Together
One of the less-discussed compliance requirements in any renovation involving both new metallic pipework and electrical systems is equipotential bonding — also called earthing of metallic services.
Under AS/NZS 3000 and 2026 NSW Safety Standards, all metallic water and gas pipework must be bonded to the electrical earthing system. This ensures that in the event of an electrical fault, all metallic elements in the property are held at the same electrical potential — eliminating the risk of electric shock from contact with pipes or fittings.
In practice, this means the electrician needs to verify and install the bonding connections the moment new metallic pipework is in place — not as an afterthought weeks later. Because Pearla and Scott Electrics work as a coordinated team, the equipotential bonding audit at 10 Prahran Avenue was completed simultaneously with the plumbing rough-in, not after it. The bonding was verified and documented the moment the new metallic pipework was installed.
Compliance outcomes at 10 Prahran Avenue:
- All work documented to Plumbing Code of Australia requirements
- Equipotential bonding of all new metallic pipework verified and documented
- Coordinated plumbing and electrical compliance audit completed simultaneously
- NSW Fair Trading eCert issued by Scott Electrics covering the full electrical scope — July 2026 compliant
What Sydney Homeowners Should Know Before Relocating a Kitchen
If you’re planning a kitchen relocation — whether in Frenchs Forest, across the Northern Beaches, or anywhere in Sydney — here are the things that determine whether the project goes smoothly:
Drainage fall rates are non-negotiable. The new drainage run needs to achieve the correct fall from the new kitchen position to the existing stack or connection point. If the geometry of your home doesn’t allow it without structural work, that needs to be known before the project starts — not during it.
Decommissioning needs to be done properly. Capping old services and pressure testing before construction proceeds protects your walls, floors and ceiling from concealed leaks during the build phase.
Plumbing and electrical need to be coordinated. A kitchen has more electrical load than almost any other room in the house. The plumber and electrician need to be working from the same plan — otherwise you end up with supply lines running where the conduit needs to go, or vice versa.
Compliance documentation matters. For insurance purposes, for future property sales, and for the July 2026 NSW eCert mandate, your kitchen relocation needs to be fully certified. Make sure your plumber and electrician both issue the correct certificates on completion.
